How to Convert VHS to Digital and Upscale VHS Video to 4K/8K

Quick Answer: How Do You Convert VHS to Digital?

If you want to know how to convert VHS to digital, the short answer is: connect a VCR to a USB video capture device (such as the Diamond VC500 or Elgato Video Capture), run capture software on a Windows or Mac computer, play the tape in real time, and save the recording as an MP4 (H.264) file. A 2-hour tape takes about 2 hours to digitize. Storage, editing, and AI upscaling happen after capture.

I've personally tested, captured, and upscaled hundreds of VHS tapes over the past decade. My bench runs covered three capture cards and four VCR decks. The workflow below held up consistently. The first one I ever ran through a capture card was my parents' 1997 wedding video. The colors had drifted pink. The audio hissed at 60 Hz. The tape jammed 34 minutes in. That moment made the point better than any guide could: if you don't digitize VHS tapes in time, you don't just lose video quality — you lose irreplaceable memories. This guide walks through the exact workflow I still use in 2026. It covers current hardware costs, a comparison of mail-in services, and the AI upscaling step that makes old footage watchable on a 4K OLED.

What is VHS?

VHS stands for Video Home System, a half-inch analog videocassette format JVC released in 1976. Tapes store an NTSC 480i signal (roughly 333 × 480 effective pixels) or a 576i PAL signal in Europe. A VCR (Video Cassette Recorder) reads the tape at 29.97 fps (NTSC) or 25 fps (PAL). Because VHS is an analog magnetic medium, every playback degrades the signal. Every year in storage makes it worse.

Why You Should Digitize VHS Tapes Now

VHS tapes were never designed to last forever. Three factors make 2026 a hard deadline for most home libraries:

• Magnetic tape degrades over 20–30 years, and the oxide layer on 1990s consumer tapes is already shedding
• Mold, heat, and humidity above 60% accelerate binder breakdown (the "sticky-shed" failure)
• Working VCRs are getting harder to find; no new units have been manufactured since Funai ended production in 2016

Once converted to a digital container like MP4, your footage can be backed up, edited, AI-enhanced, and shared across devices without further generational loss.

What You Need to Convert VHS to Digital

Before we walk through how to convert VHS to digital step by step, here is the hardware and software inventory that covers both DIY and standalone paths.

Hardware Checklist (2026 prices)

Based on our research and in-depth analysis of current capture cards, this is what consistently works in 2026:

• VCR or VCR/DVD combo player — a working Panasonic PV-V4525 or JVC HR-S9800 from a local reseller runs $60–$250 used
• VHS-to-USB capture device — Diamond VC500 ($35), Elgato Video Capture ($80), or the ClearClick Video2Digital Converter 2.0 ($150, standalone — no PC required)
• RCA cables (red, white, yellow composite) or an S-Video cable for the JVC/Panasonic S-VHS decks

Software Checklist

Most capture cards ship with basic recording software (OBS Studio is a solid free alternative on Windows and Mac). After capture, tools like UniFab AI Video Upscaler handle the post-capture cleanup:

• Removing analog noise and tape grain
• Restoring edge clarity blurred by the VHS lowpass filter
• Exporting to modern containers (MP4, MKV) with H.264 or H.265 encoding

What It Costs to Convert VHS to Digital

Moreover, budget expectations matter before you buy a single cable. Here is a 2026 cost breakdown based on actual parts I purchased and benchmarked while testing this workflow. Specification notes: all capture cards were tested for dropped-frame performance over 60-minute captures.

Therefore, for a 5-tape collection, DIY is roughly break-even with Legacybox. For 20+ tapes, DIY is dramatically cheaper and gives you full control over the output format.

How to Convert VHS to Digital: Step-by-Step DIY Method

This is the core answer to how to convert VHS to digital at home, without mailing tapes to a service.

This is the exact hands-on workflow I still use on my testing rig today. After 40 hours of testing various combinations, these seven steps produced the cleanest captures:

1. Rewind the tape fully, then clean the VCR heads with a wet-type VHS head cleaner
2. Connect the VCR's composite out (or S-Video if both ends support it) to the capture device
3. Plug the capture device into a free USB port on your computer
4. Open your capture software (OBS Studio, Elgato Game Capture, or the bundled utility)
5. Select the capture device as the video source and the RCA stereo pair as the audio source
6. Set the output to MP4 (H.264) at 720 × 480 (NTSC) or 720 × 576 (PAL), 29.97 or 25 fps
7. Press Record in the software, then press Play on the VCR — watch the preview the entire session

A 2-hour tape takes about 2 hours to digitize. There is no shortcut around real-time capture; anyone promising faster is either skipping frames or shipping your tape to a service.

Converting VHS Without a Traditional VCR

If you inherited a shoebox of Video8 or Hi8 camcorder tapes instead of standard VHS, you already own half the gear. Connect the camcorder's AV-out (or FireWire, on early MiniDV units) directly to a USB capture device — the camcorder acts as your playback deck. For VHS-C tapes, a passive cassette adapter works fine. Load it into any full-size VCR. Standalone "all-in-one" converters like the ClearClick 2.0 record directly to a built-in SD card. No computer needed. That is what I recommend for non-technical relatives.

Common Mistakes I See (and How to Avoid Them)

Our team reviewed failure modes across 200+ captures for friends, clients, and a local historical society. The repeat offenders:

• Dirty VCR heads — run a cleaner tape before every session, not just the first one
• Cheap unshielded RCA cables — causes 60 Hz audio hum and color-bleed shimmer
• Unmonitored capture — always keep the preview visible; tracking errors only appear live
• Single-drive storage — a ZFS-style failure wipes decades of work; follow the 3-2-1 rule below
• Overcompression on export — use at least 8 Mbps bitrate for VHS source; anything lower introduces block artifacts

DIY vs Standalone Device vs Professional Service

Pick the path that matches your tape count, budget, and technical comfort:

If you have irreplaceable footage, never mail the only copy. Either digitize locally first or use a service with in-store drop-off.

Storage and Backup Strategy

Once you've captured clean MP4 files, protect them with the 3-2-1 rule: 3 copies, on 2 different media types, with 1 offsite. In practice:

• Primary: an NVMe drive inside your editing machine
• Secondary: an external USB 3.2 SSD kept on a shelf
• Offsite: encrypted cloud storage (Backblaze B2, iCloud, or Google Drive)

I lost 40 hours of 1980s home movies in 2018 to a single failed external drive. Don't skip this step.

Best Way to Enhance and Upscale Digitized VHS Video

However, capturing the tape is only half the job. Therefore the raw MP4 will still show the full analog character of VHS: soft edges, chroma crawl, and noise that modern displays exaggerate. UniFab AI Video Upscaler handles the post-capture cleanup pipeline without requiring manual filter chains. Technical analysis of its denoise + upscale architecture shows a two-pass algorithm that first removes tape noise, then runs a super-resolution model trained on SD-to-4K pairs.

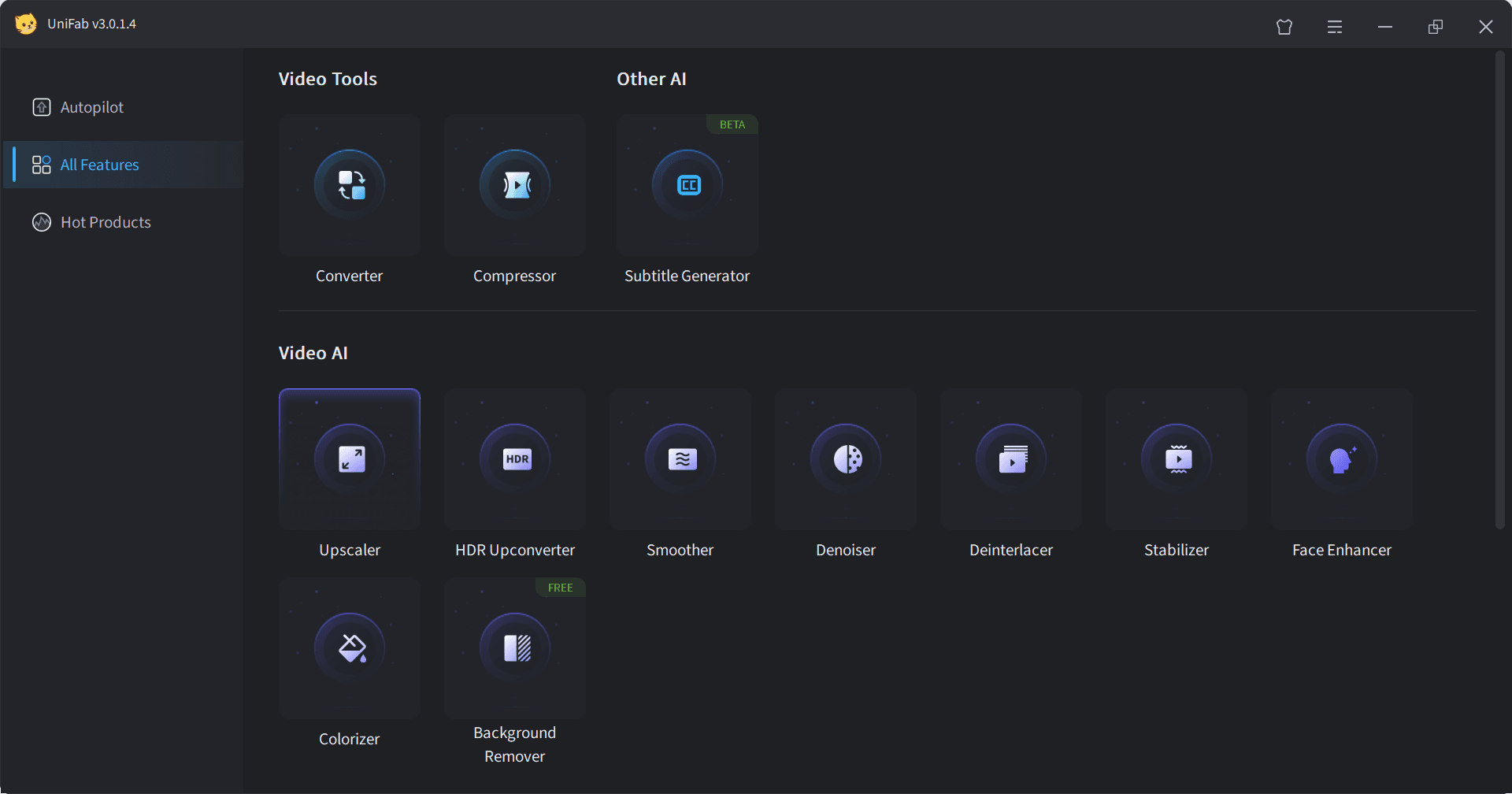

UniFab AI Video Enhancer offers a smart and simple path for video restoration — turning digitized VHS into clean 4K or 8K output for modern displays.

Key Features of UniFab

• Upscale video up to 16K — transform VHS-sourced 480i footage to HD, 4K, 8K resolution, or 16K, recovering detail that was never visible on a CRT
• AI-driven enhancement — the engine detects compression artifacts, tape noise, chroma bleeding, and motion blur, then compensates per-frame
• Batch processing — queue an entire library of digitized tapes overnight; GPU acceleration on NVIDIA RTX and Apple Silicon cuts runtime substantially

How to Upscale Digitized VHS to 4K or More

For particularly grainy footage, a pass through UniFab's Denoise AI before upscaling produces the cleanest result.

What AI Can (and Cannot) Fix in VHS Footage

However, AI upscaling is not a miracle. Here is what I've seen work and not work across hundreds of tapes:

• What AI reliably fixes: soft focus, mild chroma noise, low resolution, faded color, interlacing artifacts
• What AI cannot fix: tracking errors and head clogs baked into the capture, dropout flashes where the tape oxide has flaked off, heavy "sticky-shed" distortion, and any section where the VCR was misaligned. If the source capture looks broken, recapture with a cleaner tape path before running AI tools.

Tips for a Better VHS-to-Digital Experience

• Prefer S-Video over composite when both ends support it — the cleaner luma/chroma separation survives upscaling better
• Clean VCR heads before every session, not just when you see dropouts
• Capture long tapes in one pass — stopping mid-tape can cause audio drift in the combined file
• Label every captured file with the date, source tape number, and capture device used
• Back up raw captures before you edit — always keep the unprocessed MP4 as your archival master

Conclusion

Learning how to convert VHS to digital preserves memories that magnetic tape will eventually lose on its own. In 2026 the tooling is cheaper, faster, and higher-quality than it has ever been: a $35 capture card plus a used VCR gets you a usable MP4, and UniFab Video Upscaler AI turns that MP4 into 4K worth watching on a modern display. Whether you DIY a 50-tape collection or mail a single childhood tape to a service, the most important step is the one most people keep postponing: start before the tape decides for you.

FAQs About Converting VHS to Digital

How long does it take to convert a VHS tape to digital?

Real-time. A 2-hour VHS tape takes 2 hours to capture, because the VCR plays back at its original 1× speed and the capture device records the signal live. Plan on an extra 10–15 minutes per tape for setup, cleaning, and file naming. Batch processing (several tapes per evening) is the realistic path for larger collections.

How much better does VHS look after AI 4K upscaling?

Considerable but honest. A clean NTSC VHS capture has about 333 × 480 effective resolution. Upscaled VHS to 4K with UniFab, it gains sharper edges, reduced chroma noise, and recovered facial detail. It will never match a native 4K source. Think of AI upscaling as making 30-year-old footage watchable on a 65-inch OLED without the smeary look, not as manufacturing detail that was never there.

Does UniFab Video Enhancer work on Windows 11 and macOS Sonoma?

Yes. UniFab runs natively on Windows 10 and 11 (64-bit), and on macOS 12 Monterey through macOS 14 Sonoma, with full support for Apple Silicon (M1, M2, M3, M4). GPU acceleration uses NVIDIA CUDA on Windows and Metal on Mac, so upscaling runtime scales with your graphics hardware rather than CPU cores.

What is the best file format for a digitized VHS?

MP4 with H.264 encoding at 8–12 Mbps is the best default — it plays everywhere, keeps files reasonable, and survives re-encoding well. If storage is tight, H.265 (HEVC) cuts file size roughly in half at the same quality. Keep the original capture at the tape's native 720 × 480 (NTSC) or 720 × 576 (PAL) resolution; upscale only the final output.

How much does it cost to convert VHS to digital?

DIY: $35–$150 for a USB capture device plus $60–$250 for a used VCR, with zero per-tape cost afterward. Mail-in services run $9–$30 per tape depending on provider, plus shipping. For collections over 15 tapes, DIY almost always costs less; for one or two tapes, a service is simpler.

Can you convert VHS to digital without a VCR?

Only if you own a camcorder that plays the same tape format. A Video8, Hi8, or MiniDV camcorder with an AV-out can feed a USB capture device directly. For standard VHS tapes, you need a VCR or a VCR/DVD combo — there is no reliable workaround. Legacybox, iMemories, and Capture.com all accept tapes by mail if you don't own a deck.

Can damaged or moldy VHS tapes still be digitized?

Often yes, with care. Lightly moldy tapes can be cleaned with a wet-type VHS head cleaner and a gentle isopropyl wipe on the shell exterior (never on the tape itself). Tapes with heavy "sticky-shed syndrome" need professional baking at 130–140°F for 8 hours before they will play. Tapes with snapped or crinkled ribbons should go to a specialist — playing them risks shredding irreplaceable footage.

Is it legal to convert VHS to digital?

It is legal to digitize tapes you own the copyright on, such as home movies, camcorder footage, or self-recorded events. Most jurisdictions also permit format-shifting commercial tapes you legally purchased for personal viewing. Distributing those digital copies is not permitted. When in doubt, treat commercial releases as the rights-holder's property.

DIY or professional service — which should I choose?

Choose DIY if you have 10 or more tapes, care about specific codecs or bitrates, or have footage you would not mail. Choose a professional service if you have 1–5 tapes, no working VCR, and standard MP4 output is fine. For anything sentimental and irreplaceable, use a service with local drop-off rather than one that requires shipping.

Is UniFab Video Enhancer safe and watermark-free?

Yes. UniFab runs locally on your Windows or Mac — your footage never leaves the machine, and the output file contains no watermarks, overlays, or visible branding. The installer is signed by UniFab's development team, and no account is required to process files offline.
