UniFab Video Upscaler Technology Analysis: Innovations in Four Models

As high-resolution and ultra-high-resolution video content become more popular, video processing technologies—especially upscaling—have grown increasingly important. Upscaling technology intelligently enhances and enlarges low-resolution videos, delivering clearer and more detailed visuals on higher-resolution devices, significantly improving the user’s viewing experience.

This article focuses on UniFab’s latest Upscaler technology, exploring its technical challenges and introducing four innovative models tailored for different applications: Speed Optimized, Quality Optimized, Texture Enhanced, and Anime Optimized. It also analyzes their performance based on real-world use cases.

Technical and Difficulty Analysis

Trade-off between Algorithm Complexity and Performance

High-quality video upscaling typically relies on advanced deep learning models like Deep Convolutional Neural Networks (CNNs) and Generative Adversarial Networks (GANs). These models capture spatial and temporal video features through multi-layer nonlinear transformations, enabling detail restoration and noise reduction.

For example, super-resolution reconstruction networks like ESRGAN (Enhanced Super-Resolution GAN) and RCAN (Residual Channel Attention Networks) contain millions or even hundreds of millions of parameters. While this large capacity greatly improves reconstruction quality, it also demands significant computational resources, including floating-point operations (FLOPs) and memory. Key factors to consider when designing such algorithms include:

• Network Structure Selection: Techniques such as Residual Learning, Dense Connections, and Attention Mechanisms are employed to enhance information flow efficiency and generalization ability.
• Model Pruning and Quantization:Reduce computational load and model size through structural pruning and weight quantization to accelerate inference without significantly affecting quality.
• Multi-scale feature fusion:Hierarchical feature processing networks can capture multi-resolution information, enhancing reconstruction details, but also increasing network complexity, requiring a trade-off in design.
• Loss Function Design:  Jointly using Content Loss, Perceptual Loss, and Adversarial Loss to comprehensively optimize image quality, which affects the convergence speed and final results.

Overall, algorithm design must achieve an optimal balance between performance and computational resources to meet the dual requirements of latency and quality in application scenarios.

Complex data processing flow

The data processing workflow during video upscaling is meticulous and complex, typically encompassing the following key stages:

• Preprocessing: Operations such as video frame denoising, color space conversion (e.g., from YUV to RGB or floating-point representation), inter-frame alignment, and de-jittering to ensure the quality and format consistency of input data.
• Spatial and Temporal Feature Extraction:  Convolutional layers and Temporal Convolution are used to extract spatial and temporal features from video frames, with the key being to maintain the integrity and diversity of information.
• Reconstruction Upsampling (Reconstruction):Based on the extracted features, high-resolution images are restored through upsampling techniques such as deconvolution and pixel shuffle.
• Postprocessing: Includes sharpening filtering, artifact suppression, color correction, and temporal consistency maintenance, etc., to enhance visual coherence.

An efficient data flow design is crucial for accelerating video processing, and specific techniques include:

• Pipeline parallelism: Each processing stage executes concurrently through hardware pipeline technology, reducing waiting time and increasing throughput.
• Memory bandwidth optimization: Reduce read and write latency through caching strategies (such as image block caching, prefetching mechanism) and compressed storage to avoid becoming a performance bottleneck.
• Heterogeneous computing scheduling: Reasonably allocate CPU and GPU tasks, leverage the parallel computing advantages of GPU and the control and scheduling capabilities of CPU to achieve load balance.
• Data Format Conversion and Compression: Adopt efficient encoding and decoding formats, such as NV12 and FP16 floating-point precision, to reduce bandwidth requirements and computational burden.

Hardware Resources and System Integration

The performance of the hardware platform directly limits the operational efficiency and scalability of algorithms. Modern Upscaler implementations generally rely on the following hardware resources:

• GPU Acceleration: GPUs with CUDA, OpenCL, or Vulkan enable parallel matrix multiplication and convolution, greatly speeding up neural network inference. High-end GPUs with Tensor Cores support mixed precision (FP16/BF16) to further reduce latency.
• Multi-core CPU Parallelism:Utilize multi-threading and SIMD instructions (such as AVX512) in preprocessing, scheduling, and non-computationally intensive tasks to achieve parallel processing and enhance overall system responsiveness.
• Memory Capacity and Bandwidth:Video memory size determines the resolvable video frame resolution and batch size, while memory bandwidth affects data transfer speed, directly related to algorithm throughput.
• Hardware-specific accelerators: Such as deep learning inference chips like TPU, NPU, ASIC, etc., which provide lower power consumption and higher performance inference capabilities, suitable for edge devices and mobile endpoints.
• Software and Hardware Co-Optimization: Optimize and deploy models through inference engines such as TensorRT and ONNX Runtime, and leverage technologies like Graph Fusion, Operator Fusion, and automatic kernel tuning to maximize hardware performance.

Hardware scalability (e.g., multi-GPU support), compatibility across platforms, and power consumption limits must also be considered. Achieving high-quality, low-latency upscaling requires close hardware integration and targeted optimization of algorithms and data flows to balance performance and efficiency.

UniFab Four Upscaler Models: Overview & Innovations

The four upscaling models launched by UniFab -- Speed Optimized, Quality Optimized, Texture Enhanced, and Anime Optimized -- are all based on the latest Deep learning and parallel computing technologies, featuring cutting-edge and innovative algorithm and architecture designs tailored to different application scenarios, comprehensively enhancing video upscaling performance and image quality.

Speed Optimized

This model aims for ultimate speed and achieves efficient and stable real-time video upscaling through multiple cutting-edge technologies and architectural innovations. Specific technical details and innovations include:

Lightweight neural network architecture design

• Uses Depthwise Separable Convolution to split standard convolution into depthwise and pointwise operations, reducing computation and parameters while maintaining strong feature representation.
• Integrates the ShuffleNet module, using Channel Shuffle to enhance feature mixing, boosting network efficiency and reducing memory access.
• Implements a dynamic mechanism to adjust network depth and width based on video complexity, enabling adaptive model size and on-demand computing resource allocation.

Multi-level Cache Hierarchy Optimization

• Design a multi-level cache system using on-chip cache, including L1/L2 cache and shared cache, to optimize the data cache hit rate, reduce the frequency of accessing external video memory, thereby reducing latency and energy consumption.
• Combining Near-Memory Computing technology, it moves some convolution computations closer to the storage unit, performing partial computations at the data generation end, thus saving memory bandwidth and shortening the data transmission path.
• Develop a Self-Adaptation cache management strategy to dynamically schedule cache content, optimize cache allocation for different frame features and computation stages, and maximize cache utilization.

Speculative Pipeline Control

• Introduce a pipeline scheduling mechanism based on video frame content complexity prediction, evaluate subsequent computational loads in advance, adjust pipeline depth and parallelism, and implement dynamic allocation and scheduling of computational resources.
• Predict and preprocess potential computational stalls and conflicts in the pipeline, reduce idle cycles through pipeline separation and rearrangement, and ensure the efficient utilization of computing units.
• Achieve asynchronous overlap of computation and data transfer, hide data transfer time, and further reduce overall processing latency.

Dynamic Tensor Compression Technology (Dynamic Tensor Compression)

• Dynamically adjust the low-rank decomposition parameters of tensors in neural networks during the inference phase, automatically adjusting the rank of tensors according to the complexity of the current video frame, to achieve the goal of compressing tensor dimensions and reducing computational load.
• Combined with sparse tensor representation, targeted removal of redundant activations, reduction of unnecessary computations, and improvement of inference speed are achieved through sparse activation pruning and channel sparsification strategies.
• Implement dynamic conversion of tensor formats (e.g., from dense format to compressed sparse format), and leverage hardware-accelerated sparse matrix operations to reduce memory access and computational burden.

End-to-end system collaborative optimization

• Integrate lightweight networks, caching mechanisms, pipeline control, and dynamic compression to build an end-to-end data processing and computing collaboration mechanism, avoiding resource waste and performance bottlenecks in the processing chain.
• Optimize the scheduling of computing units and memory management at the hardware architecture level to adapt to the dynamic characteristics of the model and achieve real-time optimal energy efficiency ratio.
• Supports multi-threaded, multi-core heterogeneous parallelism, is compatible with GPUs and AI accelerators, ensuring that the model can achieve optimal performance on diverse hardware platforms.

Quality Optimized

The Quality Optimized model focuses on enhancing the image quality performance of video upscaling, combining multiple innovative technologies and architectural designs to achieve precise detail restoration and efficient inference. Its technical features and innovative details can be summarized as follows:

Deep Residual Attention Network

• The network structure uses deep residual blocks to alleviate the layer vanishing problem, improve training stability, and enhance the model's expressive ability.
• The integrated channel attention mechanism (Channel Attention, such as the SE module) automatically learns the importance of each channel, enhances the response of key features, and suppresses irrelevant information.
• The Spatial Attention module enhances sensitivity to spatial positions, precisely locates detailed regions, and improves the restoration quality of textures and edges.
• Combining the synergistic effect of residual and multi-attention mechanisms, it achieves effective discrimination and restoration of image details and noise.

Multi-scale Feature Pyramid Fusion

• The network design uses a multi-branch structure to synchronously extract feature representations at different resolution levels. The lower layers capture high-resolution detailed high-frequency information, while the upper layers obtain semantic context.
• Using the concept of Feature Pyramid Network (FPN), it fuses multi-layer features to alleviate the problems of layer vanishing and information bottleneck, and enhance the representation ability across different scales.
• By adopting a bidirectional propagation path that combines top-down and bottom-up approaches, it achieves efficient integration of features and enhances the ability to recover details.
• Mixed Precision Training and Inference Strategy
• Both training and inference use FP16 mixed precision, reducing memory usage and computation time through half-precision floating-point calculations, while leveraging Loss Scaling technology to avoid numerical underflow.
• Self-Adaptation innovatively introduces Adaptive Numeric Range Calibration, utilizing dynamic range tracking and correction to ensure the reduction of performance degradation caused by precision loss.
• This strategy significantly reduces hardware computing power requirements, improves inference throughput, and optimizes system resource utilization while ensuring image quality.

Generative Adversarial Training (GAN-based adversarial training)

• Combining with the structure of the adversarial network, the discriminator guides the generator to learn more realistic detailed textures and natural images.
• Introduce a multi-objective loss function that combines perceptual loss and adversarial loss to enhance texture details and structural consistency.
• During the training process, Spectral Normalization is employed to prevent the discriminator from overfitting and ensure training stability.
• Effectively suppresses over-smoothing and artifacts, greatly enhancing the visual naturalness and detail sharpness of video magnification.

Advanced Regularization and Data Augmentation Strategies

• Enhance data diversity through techniques such as spatial transformation, color jittering, and noise injection to improve the model's generalization ability and adaptability to complex scenarios.
• Using gradient-based regularization methods (such as gradient penalty) to further reduce high-frequency noise that may occur during the reconstruction process.

System Optimization for High-End Content Production

• Optimize memory access patterns, support high-resolution batch processing, and improve system throughput.
• Combined with the multi-task learning framework, it achieves multi-dimensional enhancements such as noise suppression and style consistency maintenance.
• The model is adaptable to multiple hardware platforms and utilizes inference accelerators such as TensorRT to achieve faster inference speed.

Texture Enhanced

The UniFab Texture Enhancement Model is built on a spatio-temporal convolutional network, integrating self-attention mechanism and multi-scale feature fusion strategy. Through residual learning and multi-task loss optimization, it fully utilizes intra-frame and inter-frame detail information, achieving accurate restoration and efficient enhancement of complex textures.

Spatiotemporal Convolutional Network

• Uses 3D convolutions to extract spatial and temporal features simultaneously, capturing motion and texture across frames.
• The 3D kernel slides between frames, fusing texture and motion.
• Combined with temporal recursion (ConvLSTM or GRU), it dynamically emphasizes key motion areas and long-range temporal info, excelling in complex scenes like fast motion and occlusion.

Self-Attention Mechanism

• Allocates feature weights by capturing long-range dependencies across spatial regions and temporal frames in the video.
• Suppresses noise, enhances key structures, and focuses on important details.
• Effectively handles complex motion, occlusion, and background changes by capturing cross-frame and cross-region context.
• Multi-head self-attention further improves feature diversity and expression.

Multi-scale Feature Fusion

• Uses an encoder-decoder architecture with skip connections to fuse features at multiple scales.
• The encoder downsamples to extract semantic info, while the decoder upsamples to restore resolution.
• Skip connections pass high-res features from encoder to decoder, preserving spatial details.
• This fusion improves noise robustness, texture accuracy, and produces natural, smooth, detailed videos.

Reconstruction and Residual Learning

• The reconstruction module uses residual learning to focus on differences between input and high-quality frames, such as noise and blur.
• This approach targets detail restoration and defect repair, avoiding redundant learning and improving restoration quality and efficiency.
• Residual connections speed up training and reduce gradient vanishing.
• Combined with deep convolution layers and skip connections, the model captures global structure and fine local details, enhancing clarity and visual quality.

Training Objectives and Loss Functions

The design of the multi-task loss function comprehensively considers multiple dimensions such as image reconstruction accuracy, edge sharpening, and texture preservation, ensuring that the model can achieve stable and excellent performance under different scenarios and content types. Common losses include:

• Content loss (L1 or L2 loss) ensures the pixel-level similarity between the reconstructed image and the real image.
• Edge enhancement loss (such as gradient loss) strengthens the clarity of image edges and detailed contours.
• Texture preservation loss (perceptual loss, based on feature differences of pre-trained convolutional networks), which enhances the realism and naturalness of textures.
• Adversarial loss (GAN loss), which further reduces artifacts and enhances the naturalness and diversity of visual quality through adversarial training.

For details, please refer to this article 👉 UniFab Texture Enhanced: Technical Analysis and Real-World Data Comparison

Anime Optimized

UniFab Anime Model has conducted in-depth technical optimization and architectural innovation targeting the unique visual characteristics of animation content, aiming to achieve high-quality anime video upscaling and detail enhancement, ensuring sharp lines and vibrant colors, while also taking into account processing efficiency and visual coherence.

Style-Aware Convolutional Neural Network

• The model includes a style-aware convolution module that enhances line clarity and color block uniformity by adapting to the unique edges and colors of anime images.
• By learning animation style features, it preserves the original artistic look, preventing over-smoothing or over-sharpening distortions.

Color Consistency Preservation Module

• Uses Spectral Normalization and chromaticity separation to maintain stable colors across frames, preventing color drift and discontinuities in anime videos.

Highly Parallel Lightweight Architecture

• Employs grouped convolution and tensor rearrangement for a lightweight, highly parallel model that reduces resource use and boosts inference speed, supporting real-time high-frame-rate upscaling.

Temporal Frame Consistency Optimization

• Applies time-domain inter-frame consistency techniques to reduce flicker and jitter, ensuring smooth, natural playback of consecutive frames.

Specialized Edge Protection Strategy

• Combines edge-guided filtering and multi-scale edge detection to keep anime lines sharp and clean, avoiding blurring or breakage common in traditional methods.

Multi-task Training and Loss Design

• Integrates content reconstruction, edge fidelity, and style preservation losses to balance detail, color accuracy, and texture quality during training for high-fidelity anime upscaling.

For details, please refer to this article 👉UniFab Anime Model Iteration

Universal Innovation Technology

All models fully utilize the latest GPU multi-threaded parallel architecture with CUDA Core Scheduling, Memory Access Pattern optimization, and Zero-copy technology to maximize throughput and minimize latency. UniFab also integrates a heterogeneous computing framework, enabling collaborative processing across GPUs, CPUs, and AI chips, ensuring efficient operation and enhanced adaptability across hardware platforms.

Effect demonstration of UniFab's four models

Based on multiple performance tests, the test machine is:

GPU : NVIDIA GeForce RTX 4070
CPU：AMD Ryzen 7 5700G with Radeon Graphics

The effects of the four UniFab models are as follows:

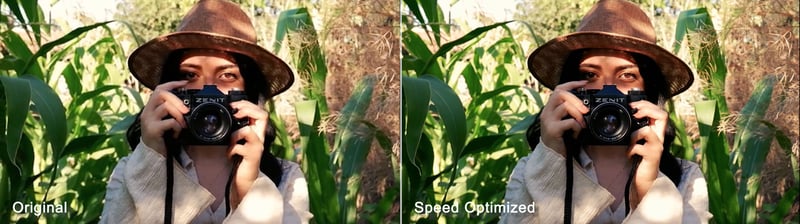

• The Speed Optimized model is specifically designed for users with high requirements for processing speed and can quickly complete video upscaling and output.

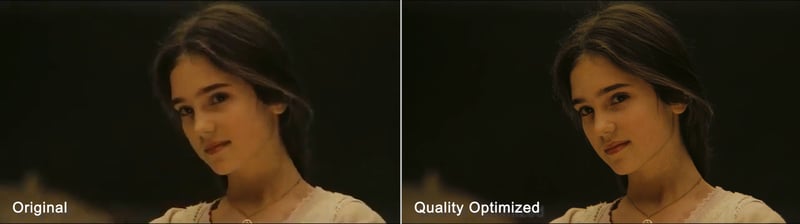

• The Quality Optimized model significantly enhances the restoration ability of image details through the deep attention mechanism and multi-scale fusion technology, presenting richer and more natural details as well as a realistic picture texture.

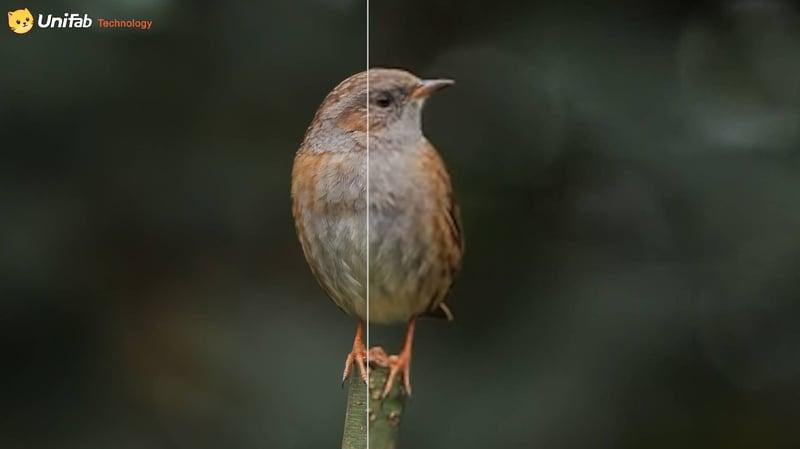

• The Texture Enhanced model has outstanding advantages in complex texture representation, capable of delicately restoring minute texture details and material textures, while effectively suppressing texture distortion to ensure that the image has a high degree of visual realism and layering.

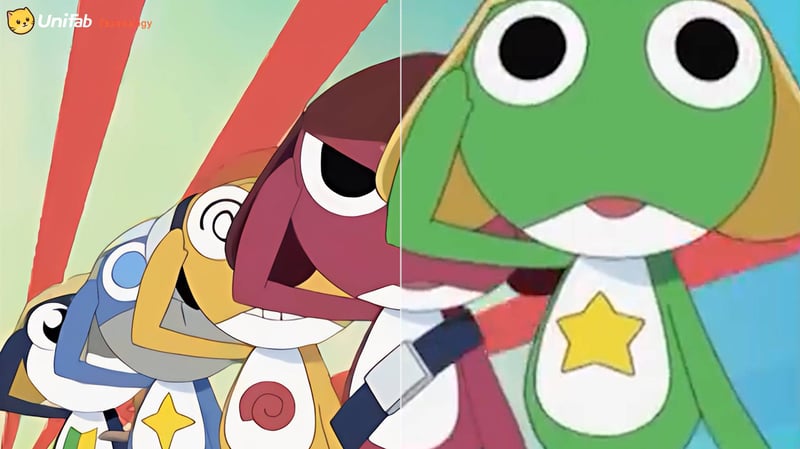

• The Anime Optimized model is specially optimized for the characteristics of animation content, accurately restoring the unique line style and vivid colors of animation, significantly enhancing the sharpness and color saturation of the picture, and providing a more vivid and artistic visual effect.

Overall, the four models can be flexibly selected by users according to specific application requirements to achieve the optimal match between speed and quality.

Summary and Outlook

Building on deep technical expertise, the UniFab team continually optimizes video upscaling technology, overcoming algorithmic and hardware limits to deliver diverse, scenario-tailored models. As AI algorithms advance and hardware improves, upscaling will more deeply integrate with Multimodal Machine Learning and edge-cloud collaborative computing, boosting intelligence and robustness.

The team will keep exploring innovative architectures and optimizations, pushing video processing toward higher quality and efficiency for an exceptional visual experience.

👉 Community Link: UniFab Video Upscaler Technology Analysis: Innovations in Four Models - UniFab AI Community

Welcome you to share topics or frame interpolation models you're interested in on our forum. We will regularly publish technical reviews and version updates to drive continuous improvement and seriously consider your feedback from testing and evaluation.

Preview of the next article: RTX RapidUpscaler AI
