UniFab 3030 | Nvidia 50 Series GPU Utilization Improvement Analysis

As video quality demands rise, AI-driven enhancement technology becomes increasingly vital. Computing performance directly impacts the smoothness and quality of video enhancement. As flagship AI video enhancement software, UniFab focuses on hardware and software co-optimization to fully utilize GPU performance.

In the latest 3030 version, UniFab boosted NVIDIA 50 series GPU utilization from about 60% to 97%-100%, greatly shortening video processing time and delivering a highly efficient experience.

This article explores the key technical factors behind this improvement and shares our optimization approach.

Background and Challenges

In the previous version, despite GPU acceleration, the utilization of NVIDIA 50 series GPUs remained around 50%-60%, leaving GPU resources underutilized. This resulted in higher video processing latency and limited efficiency, falling short of user expectations.

The main reasons for low GPU utilization include:

• Data transfer bottlenecks: inefficient CPU-GPU data transfer causing GPUs to frequently wait;
• Insufficient parallelism in computing tasks: AI model inference processes had serial bottlenecks, failing to fully leverage GPU parallel computing capabilities;
• Inefficient memory access: bandwidth limitations and fragmentation led to poor memory transfer efficiency, hindering performance release.

To overcome these bottlenecks, comprehensive optimizations across architecture, algorithms, and scheduling are required.

Detailed Techniques for Improving NVIDIA 50 Series GPU Utilization

To overcome the ~60% utilization bottleneck of the 50 series GPUs, the new UniFab version implements systematic architecture optimizations across key areas including data transmission pipelines, algorithm parallelism, memory management, and compute scheduling.

1. Data Flow and Asynchronous Transfer Optimization

Maximizing GPU compute performance relies heavily on continuous data supply. By leveraging CUDA Streams for multi-stream parallel processing combined with asynchronous memory copy and multithreaded asynchronous I/O, video frames and audio data preprocessing are decoupled from memory transfers:

• A multi-threaded producer-consumer preprocessing pipeline asynchronously loads and decodes video frames on the CPU while performing base filtering and format conversion.
• Asynchronous host-to-device memory transfers via cudaMemcpyAsync() eliminate CPU-GPU synchronization waits, boosting data throughput.
• CUDA event synchronization enables event-driven async coordination, ensuring GPU kernels launch immediately after data transfer completes, minimizing GPU idle time.
• A pipelined design allows overlapping of data loading, memory transfer, and GPU computation stages to improve overall throughput and reduce latency.

This strategy effectively alleviates PCIe transfer bottlenecks and maintains sustained GPU core utilization.

2. Algorithm Parallelism Enhancement and Model Optimization

To leverage the architecture of 50 series GPUs (such as NVIDIA Ampere or Turing SM units and Tensor Cores), deep optimizations were applied to the AI inference engine and model structure:

• Reconstruct the computation graph by dividing serial model workflows into parallel subgraphs, utilizing thread and block-level parallelism to boost SM unit utilization;
• Integrate TensorRT and Kernel Fusion techniques to reduce inter-layer memory access and scheduling overhead, improving inference efficiency;
• Employ mixed precision training (AMP), balancing FP16 and FP32 to enhance floating-point throughput;
• Implement model pruning and INT8 quantization to reduce model size and computation, accelerating inference and improving memory utilization;
• Adjust batch sizes and dynamic resolution scheduling to further enhance resource utilization flexibility.

These measures collectively increase computation density and parallelism, fully unleashing GPU computing power.

3. Efficient Memory Management and Bandwidth Utilization

Memory access efficiency and bandwidth are key GPU performance bottlenecks that require comprehensive optimization.

UniFab 3030 addresses these with innovative strategies:

• Zero-copy with pinned memory speeds up CPU-GPU data transfer by mapping host memory directly to the GPU and preventing data swapping, boosting PCIe bandwidth utilization and reducing latency.
• A unified memory pool management reduces fragmentation and system call overhead through pre-allocation and dynamic adjustment, ensuring continuous GPU memory access for video processing.
• Optimized memory access patterns enable coalesced thread access to maximize bandwidth, while pipelined prefetching hides latency and balances compute and memory loads.

4. Intelligent Dynamic Load Balancing and Scheduling

To avoid resource underutilization within 50-series GPU cores, UniFab introduces a fine-grained dynamic load scheduling strategy:

• Multi-level task monitoring and scheduling: Using GPU hardware performance counters to monitor Streaming Multiprocessor (SM) core loads in real-time, dynamically adjusting thread block and grid layouts with adaptive scheduling algorithms to achieve load balance.
• Hierarchical task scheduling model: Divides compute tasks by priority and dependencies into multiple levels, supporting task pipeline parallelism and concurrent multi-CUDA Stream processing, balancing real-time inference needs and compute-intensive loads to avoid hotspots.
• Multi-GPU heterogeneous resource coordination: Designs a heterogeneous multi-GPU scheduling framework for cross-device task distribution and data synchronization, enhancing scalability and computational efficiency.

UniFab 3030  Technical Innovation and Optimization Solutions

To significantly enhance the utilization of NVIDIA 50-series GPUs, UniFab's new version implements deep technical innovations centered on the core engine, covering algorithm design, system

architecture adjustments, data pipeline optimization, and parallel scheduling of computing resources, ensuring full activation of GPU performance potential.

1. Comprehensive Algorithm-Level Optimization

• Deep neural network architecture adjustment: UniFab restructures models based on analysis of various video enhancement networks, increasing parallelism by splitting complex convolution operations into multiple parallel nodes, reducing inter-layer data dependencies and boosting GPU core parallel load.

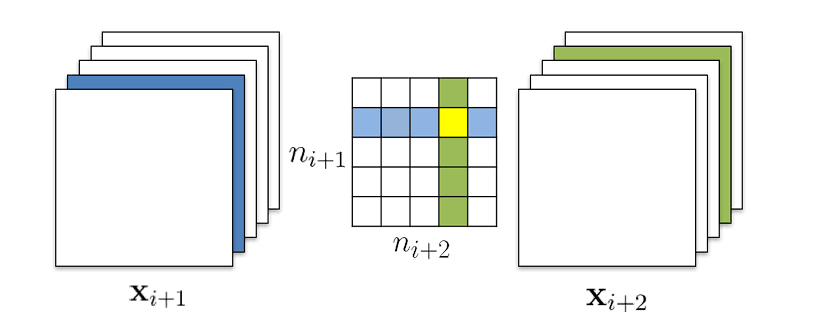

• Model pruning and sparse computation: Employs structured pruning to remove redundant parameters and compute paths, combined with sparse matrix multiplication optimization, reducing overall computation and memory pressure to improve inference efficiency.
• Mixed-precision training and inference support: Introduces automatic mixed precision (AMP) technology, using FP16 combined with FP32 calculations to significantly increase floating-point throughput per cycle while maintaining model accuracy and reducing latency.
• Real-time adaptive algorithm adjustment: Dynamically selects computation precision and enhancement strategies based on video content complexity, avoiding GPU resource waste and improving utilization efficiency.

2. System Architecture Innovation

• Modular architecture design: UniFab divides video and audio processing pipelines into modules, supporting asynchronous scheduling and independent optimization, with each module dynamically adjusting processing priority and resource allocation based on real-time GPU load.

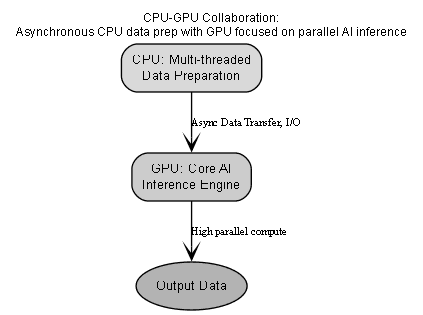

• Enhanced GPU-CPU collaboration: Optimizes CPU scheduling with multithreading to strengthen GPU-CPU cooperative tasks, offloading non-compute-intensive tasks like data preprocessing and post-composition, freeing the GPU to focus on core inference tasks.
• Unified memory management system: Implements a memory pool and unified caching strategy to ensure efficient memory allocation and consistent access, reducing performance fluctuations caused by frequent allocations.

3. Efficient Data Pipeline Restructuring

• End-to-end data pipeline optimization: Implements a pipelined design for video frame reading, decoding, preprocessing, GPU transfer, and inference to ensure seamless connection and concurrent execution across all stages.

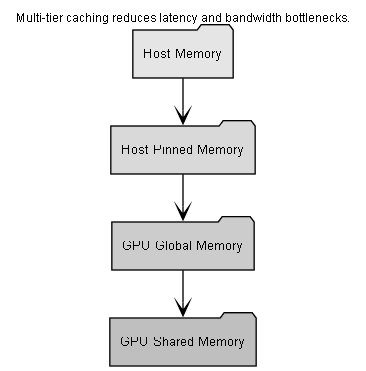

• Hierarchical cache design: Introduces multi-level buffering (Host Buffer, Pinned Memory, GPU Shared Memory) to reduce memory exchange latency and improve data throughput.
• Asynchronous task execution and priority scheduling: Utilizes CUDA Streams for multi-task asynchronous parallel execution, with priority control over different data flows to minimize latency in real-time scenarios.

4. Parallelism Enhancement and Compute Resource Scheduling

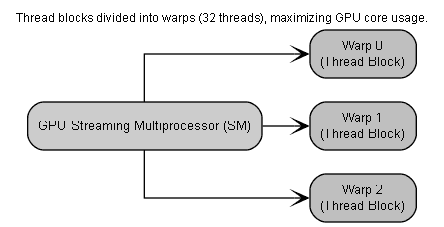

• Fine-grained thread allocation and kernel optimization minimize thread divergence, leverage shared memory and registers, and use CUDA dynamic parallelism to boost concurrency and throughput.

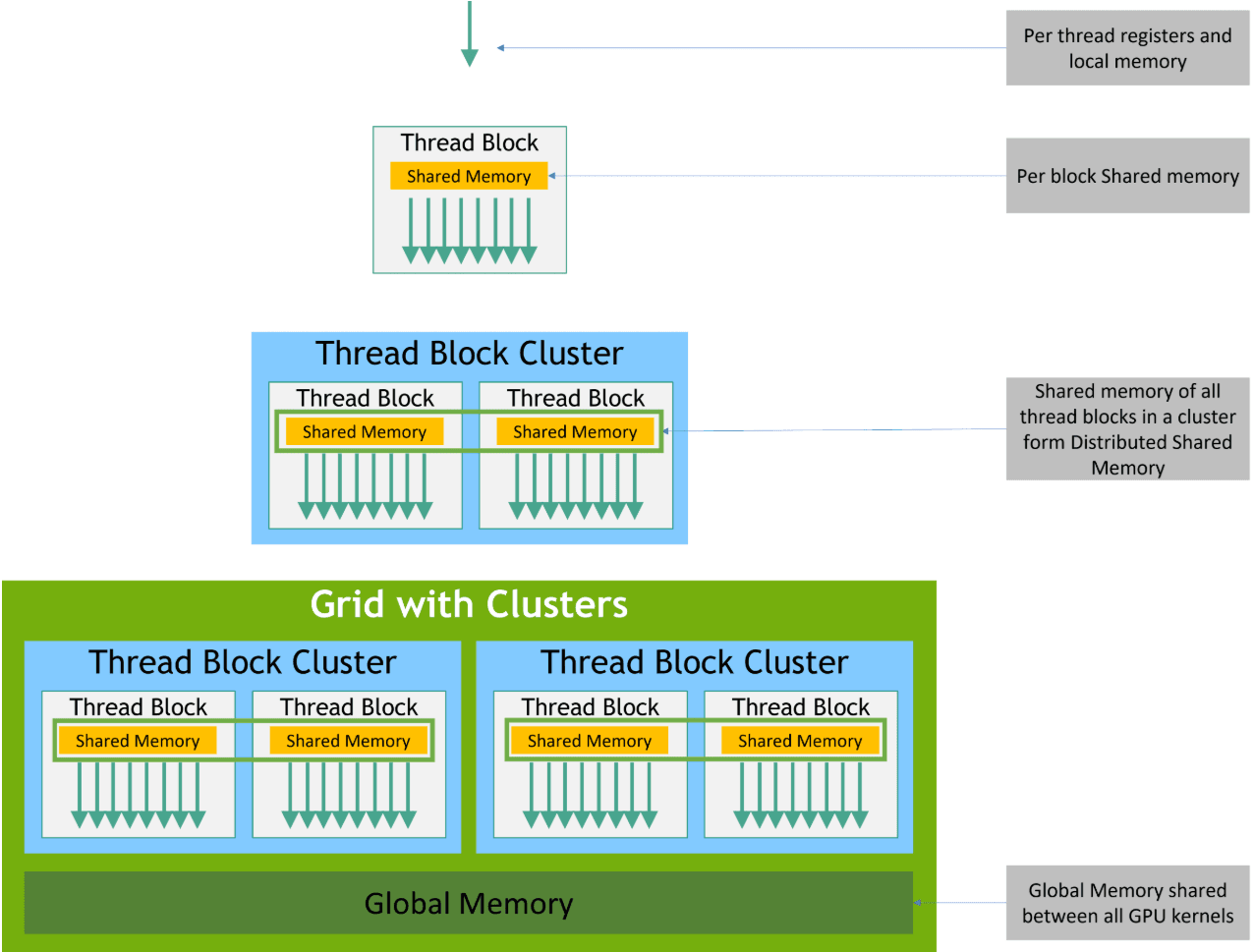

• Multi-level parallelism combines thread-level, block-level, and CUDA Stream-level concurrency to maximize GPU core utilization and enable overlapping computation and data transfer.
• Dynamic load balancing uses GPU performance counters and feedback control to monitor SM workloads in real time, adjusting thread block distribution to avoid hotspots and idle resources.
• Multi-GPU scheduling coordinates tasks across devices via high-speed interconnects, ensuring balanced loads and minimizing data transfer delays.
• Batch processing and multi-task reuse improve throughput by processing multiple frames and enhancement tasks concurrently, with dynamic adjustment of batch sizes and priority scheduling to balance efficiency and real-time responsiveness.

5. Model Optimization and Performance Profiling Tools

• NVIDIA Nsight-based profiling: UniFab uses NVIDIA Nsight to perform fine-grained analysis of GPU computation and memory usage, accurately identifying bottlenecks such as memory latency, kernel execution time distribution, and stream dependencies. Data-driven optimizations target these issues to significantly boost efficiency.
• Inference engine deep optimization: Building on TensorRT, UniFab customizes kernel optimization, restructures key operators, fuses computational operations, and reduces memory accesses and kernel calls to enhance throughput and lower latency.
• CPU-to-GPU task migration: UniFab refactors code to move high-computation tasks from CPU to GPU, leveraging GPU parallelism to replace serial CPU processing. This reduces CPU load and CPU-GPU data exchange overhead, improving overall system throughput and resource utilization.

Actual GPU Utilization of NVIDIA 50-Series Cards

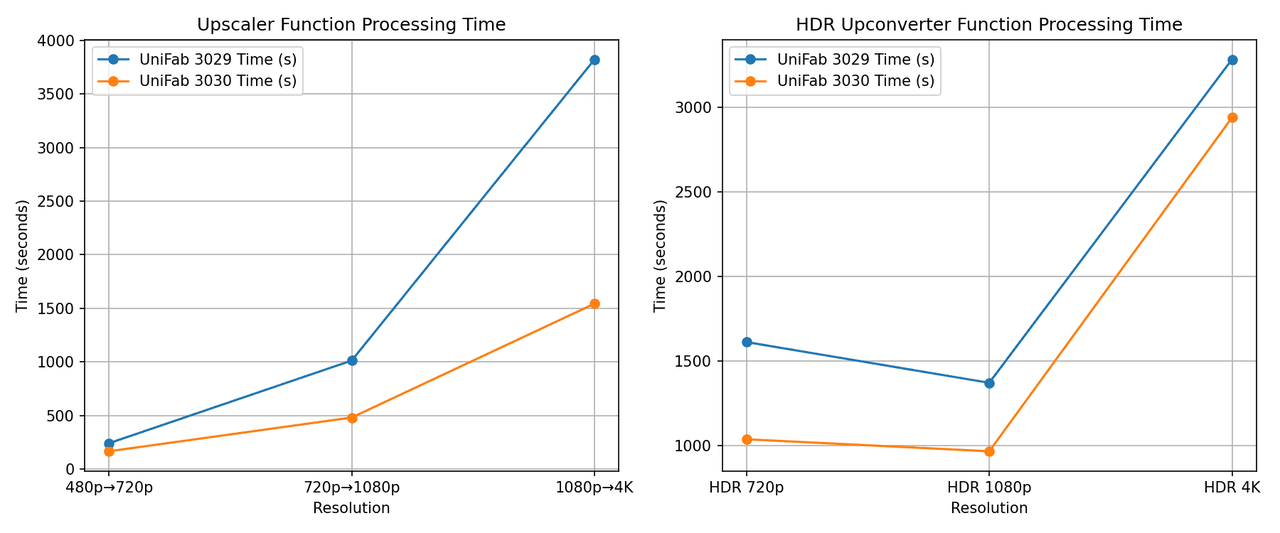

After comprehensive optimizations, the new UniFab version achieves a stable GPU utilization of 97% to 100% across various test video resolutions and scenarios on NVIDIA 50-series GPUs, delivering significant performance improvements.

UniFab 3030 demonstrates outstanding performance in multi-resolution video and HDR scenario tests following these enhancements.

Performance Highlights:

• In standard resolution video processing, UniFab 3030 achieves a 30% to 60% speed increase, with outstanding results in demanding 1080p-to-4K upscaling tasks—processing time is cut by more than half.
• HDR video tasks also see significant acceleration, with over 25% speedup at 720p and 1080p, enhancing real-time processing capabilities.
• Although 4K HDR acceleration is more modest (~10%), it still reflects efficient GPU resource utilization, ensuring stable, high-quality video rendering.

Overall, the optimized 50-series GPU utilization leads to much faster processing compared to previous versions, significantly improving GPU efficiency, reducing video processing time, and greatly enhancing user productivity and experience.

Summary and Future Outlook

UniFab remains committed to advancing AI video enhancement through hardware-software co-optimization, maximizing GPU resource utilization. Moving forward, we will continue to track NVIDIA’s latest hardware and compute library updates, integrate smarter scheduling and model innovations, and strive to deliver more powerful and efficient video enhancement solutions.

👉 Community Link: UniFab 3030 | UI Upgrade & Nvidia 50 Series GPU Utilization Enhancement

We invite you to share your topics of interest or frame interpolation models on our forum. Your testing and evaluation feedback will be carefully considered as we regularly publish technical reviews and version updates to drive continuous improvement.
